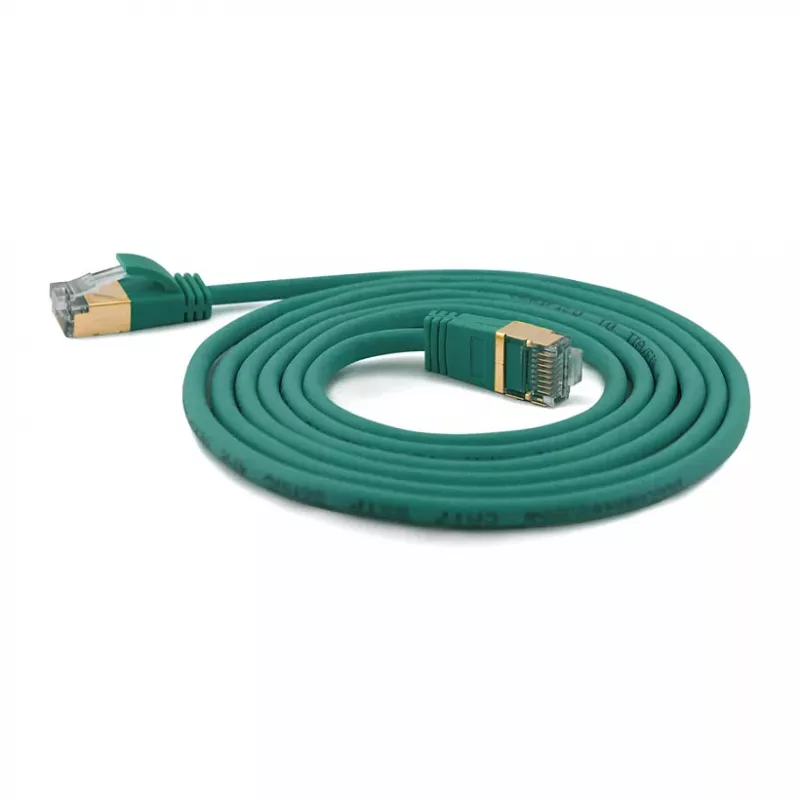

wantecWire câble patch CAT7 Extra Thin S/FTP vert 2,0m

The wantecWire Patch Cable CAT7 Extra Thin S/FTP Green 2.0m is a high-performance network cable designed for demanding Ethernet applications. With its slim 5.5 mm diameter, it is ideal for high-density patching environments where space is at a premium. The cable supports data transfer rates up to 10 Gbps over 100 meters and a bandwidth of 600 MHz, making it suitable for 10GBASE-T networks. It is fully backward compatible with CAT6a, CAT6, CAT5e, and CAT5 standards.

Advantages

Extra thin design (5.5 mm) for easy installation in tight spaces. S/FTP shielding (overall braid and foil per pair) provides excellent protection against electromagnetic interference. Gold-plated RJ45 connectors (50µm) ensure reliable, corrosion-free connections. Stranded copper conductors (AWG 26/7) offer flexibility and durability. Supports PoE, PoE+, UPoE, and 4PPoE for powering devices over the network.

Suitable for

• Data centers and server rooms
• High-speed local area networks (LAN)
• 10 Gigabit Ethernet (10GBASE-T) installations
• Home and office networking
• PoE applications (IP cameras, VoIP phones, access points)

Key specifications

• Cable type: Patch cable
• Category: CAT7
• Shielding: S/FTP
• Length: 2.0 m
• Colour: Green
• Connector: RJ45 (8P8C) both ends
• Connector plating: Gold-plated (50µm)
• Conductor material: 100% copper (OFC)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: PVC
• Bandwidth: 600 MHz
• Data transfer rate: 10 Gbps
• Outer diameter: approx. 5.5 mm
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA 568B

Recommendations

For optimal performance, use with CAT7 compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for structured cabling systems requiring high bandwidth and interference protection.
