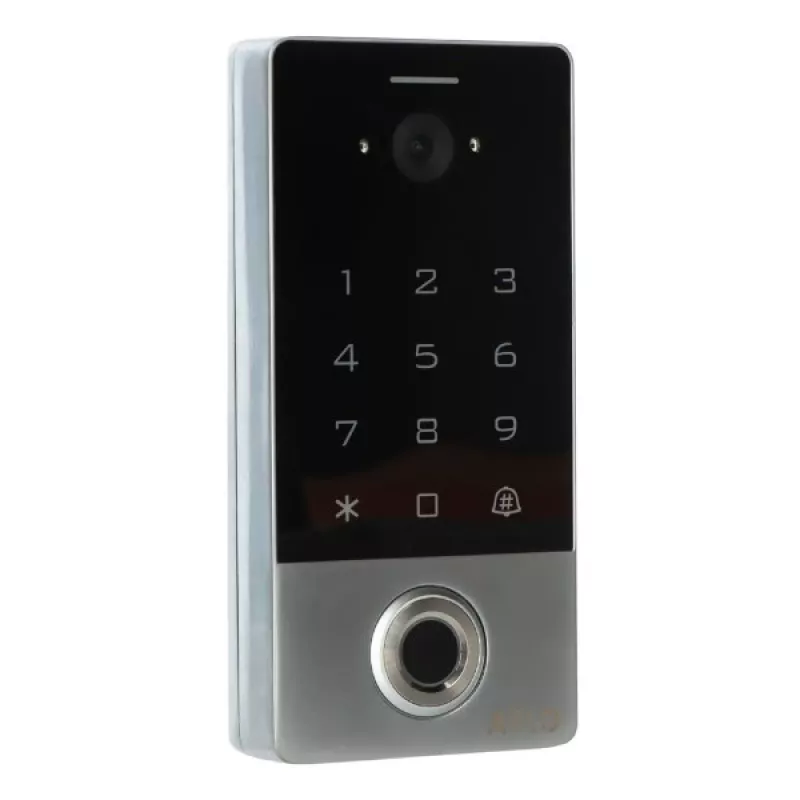

Serrure à code intelligente avec fonction visiophone ATLO-KRMF

Unlike a standard smart lock or a separate video intercom, the ATLO-KRMF combines both into a single surface-mounted unit, so you can see and speak with visitors at your door before deciding to unlock it. The outdoor panel is built around a zinc alloy housing with an IP44 rating, while the indoor monitor gives you a clear 4.3-inch colour LCD view of the entrance. Access is flexible: enter a code, tap an RFID card, use the mechanical key in an emergency, or control everything from the Tuya Smart app over Wi-Fi.

Highlights

• Integrated video doorbell and code lock – no separate devices needed
• 1.0 Mpix camera with 720p HD resolution and infrared night vision
• Two-way audio intercom with doorbell function
• Supports up to 1000 user codes or RFID cards
• Records video and captures photos to a microSD card up to 128 GB
• Remote access and monitoring via Tuya Smart app (Wi-Fi 2.4 GHz)
• Tamper alarm for added security
• Outdoor panel rated IP44, made of zinc alloy

In daily use

When someone presses the doorbell, the indoor monitor rings and shows a live image from the outdoor camera. You can talk to the visitor, then unlock the door by entering a code on the outdoor keypad, using an RFID card, or tapping a button in the Tuya app. At night, the infrared LEDs automatically illuminate the area, so faces remain visible even in complete darkness. The system records video clips or still images to the microSD card whenever motion is detected or the doorbell is pressed, giving you a record of every event.

Full specifications

• Access methods: code, RFID card, mechanical key, mobile app
• Camera resolution: 1.0 Mpix (720p HD)
• Display: 4.3-inch colour LCD
• Connectivity: Wi-Fi 2.4 GHz (IEEE 802.11b/g/n)
• Mobile app: Tuya Smart
• Power supply: DC 12 V (external)
• Memory card support: microSD up to 128 GB
• Night vision: infrared (IR) LEDs
• Intercom function: two-way audio
• Doorbell function: yes
• Material (outdoor panel): zinc alloy
• IP rating (outdoor panel): IP44
• User capacity: 1000 (codes/cards)
• Outdoor panel dimensions: 180 x 80 x 28 mm (H x W x D)
• Indoor monitor dimensions: 130 x 190 x 20 mm (H x W x D)
• Operating temperature (outdoor panel): -20°C to +50°C
• Installation type (outdoor panel): surface mounted
• Video recording: yes (to microSD card)
• Photo capture: yes (to microSD card)
• Alarm function: tamper alarm

Final note

With its all-in-one design, the ATLO-KRMF simplifies entrance security while giving you full control from anywhere.
