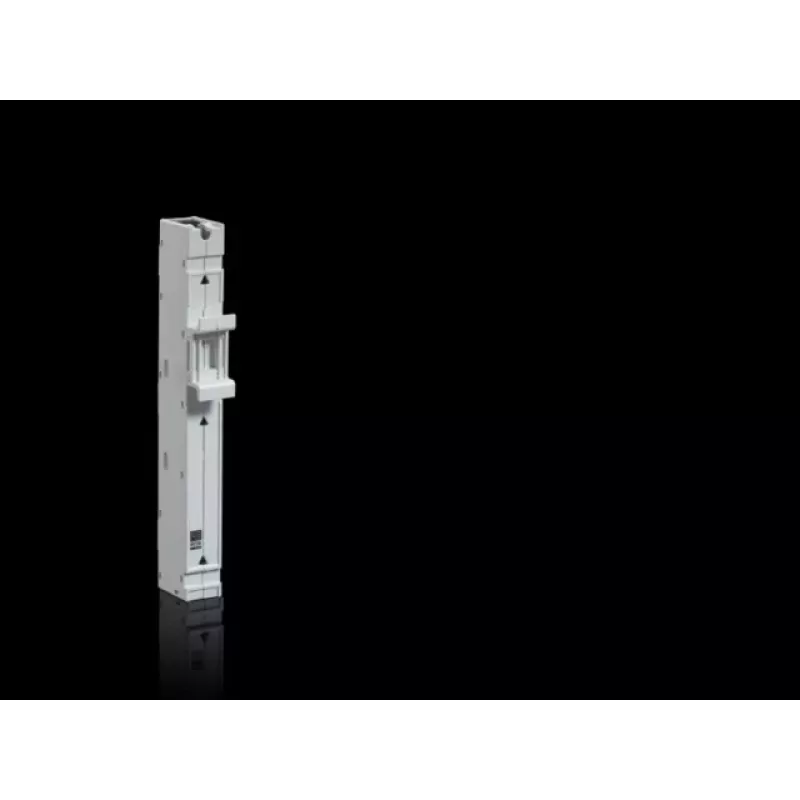

Rittal RiLine Compact Porte-appareils B (9635390)

Device carrier for the RiLine Compact busbar system, enabling tool-free snap-on mounting of 3-pole devices with screw terminals. Polyamide construction in RAL 7035 light grey, rated up to 690 V AC.

Advantages

Tool-free installation on 60 mm busbar spacing. Integrated strain relief for secure connections. Compact 45 mm width optimizes space in distribution boards.

Suitable for

• Mounting circuit breakers, fuse holders, and other DIN-rail devices
• Use in RiLine Compact busbar systems up to 690 V AC
• Applications requiring UL, cUL, VDE, or CCC approved components

Key specifications

• Material: Polyamide (PA)
• Colour: RAL 7035 light grey
• Poles: 3
• Rated operating voltage: 690 V AC
• Rated insulation voltage: 1000 V AC
• Rated impulse withstand voltage: 6 kV
• Busbar spacing: 60 mm
• Width: 45 mm (1.5 pitch units)
• Operating temperature: -25 °C to +70 °C
• Flammability rating: UL 94 V-0
• Protection category: IP20 when installed in enclosure

Recommendations

Verify compatibility with your RiLine Compact busbar system before ordering. For outdoor or harsh environments, ensure proper enclosure protection.
