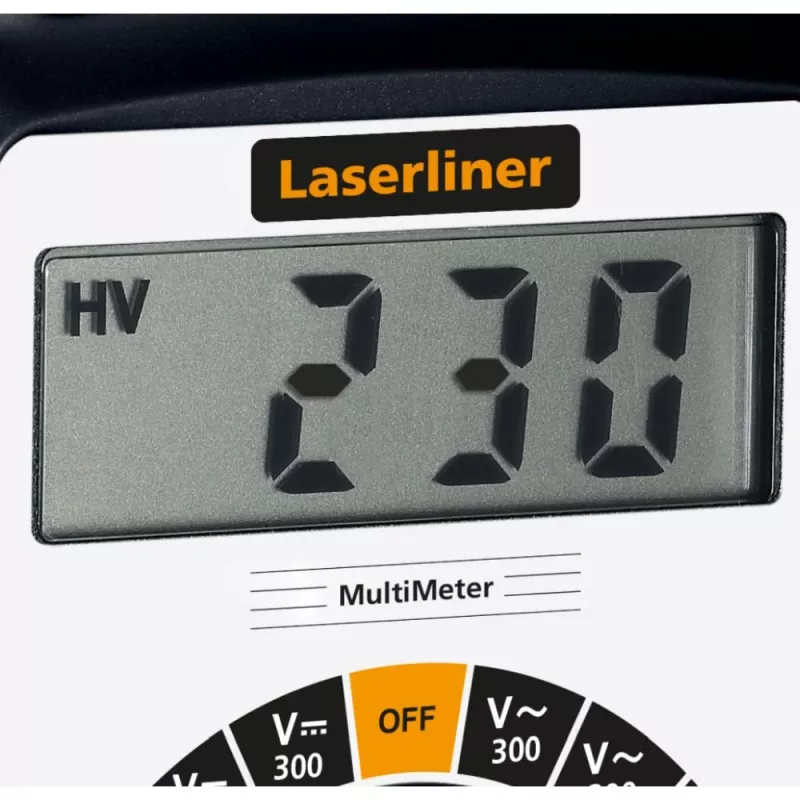

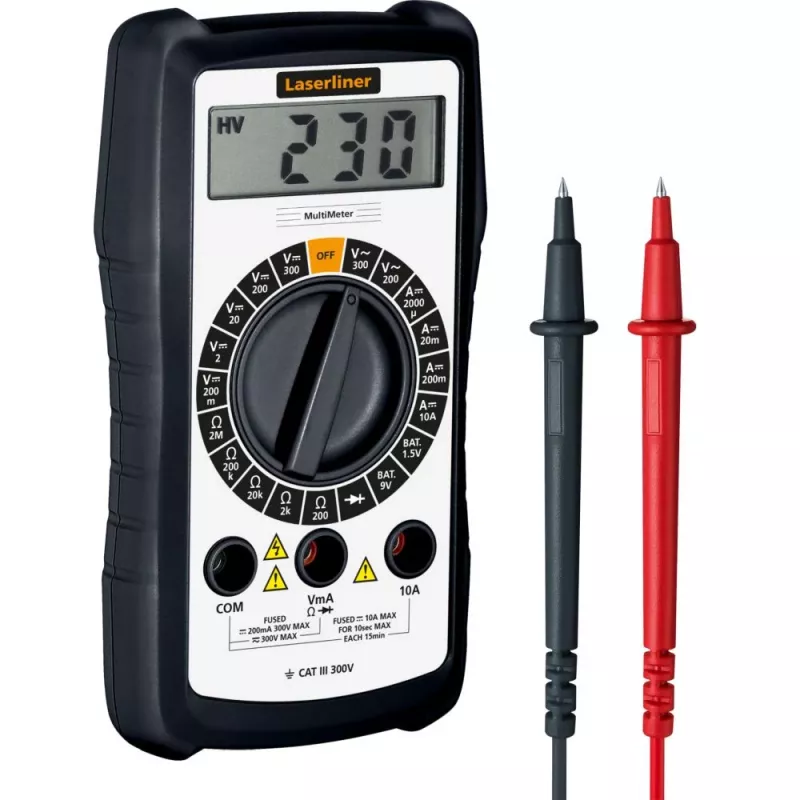

Multimètre portable Laserliner MultiMeter (083.031E)

Electricians and HVAC technicians rely on the Laserliner MultiMeter for daily troubleshooting and installation checks. This handheld multimeter measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, resistance up to 40 MΩ, capacitance up to 4000 µF, frequency up to 40 MHz, and temperature from -20 °C to 1000 °C. The 3 3/4-digit LCD with 4000 counts and backlight ensures clear readings in dim environments. True RMS technology delivers accurate measurements on non-sinusoidal waveforms. Auto-ranging simplifies operation, while data hold, min/max, and relative measurement functions support detailed analysis. Safety rated CAT III 600 V, it includes diode and continuity tests with an acoustic signal.

Key specifications

• Display: 3 3/4-digit LCD, 4000 counts, backlight
• DC voltage range: up to 600 V
• AC voltage range: up to 600 V
• DC current range: up to 10 A
• AC current range: up to 10 A
• Resistance range: up to 40 MΩ
• Capacitance range: up to 4000 µF
• Frequency range: up to 40 MHz
• Temperature range: -20 °C to 1000 °C
• True RMS: Yes
• Auto-ranging: Yes
• Safety rating: CAT III 600 V
• Diode test: Yes
• Continuity test: Yes (acoustic signal)
• Data hold: Yes
• Min/Max measurement: Yes
• Relative measurement: Yes
• Power source: 2 x 1.5 V AAA batteries

Why choose it

The Laserliner MultiMeter combines essential measurement functions with user-friendly features like auto-ranging, backlight, and True RMS. Its CAT III 600 V safety rating makes it suitable for professional use on building installations. The included temperature measurement extends its versatility for HVAC applications. Data hold and min/max functions help capture and compare readings efficiently.

Ideal use cases

• Electrical installation testing and troubleshooting
• HVAC system maintenance and diagnostics
• Appliance repair and electronics testing
• Automotive electrical system checks

Good to know

The multimeter is powered by two AAA batteries. It features a backlit display for low-light conditions and a continuity buzzer for quick circuit checks. The auto-ranging function reduces setup time, while True RMS ensures accurate readings even with distorted waveforms.
