Carte d'interface LogiLink UA0144A

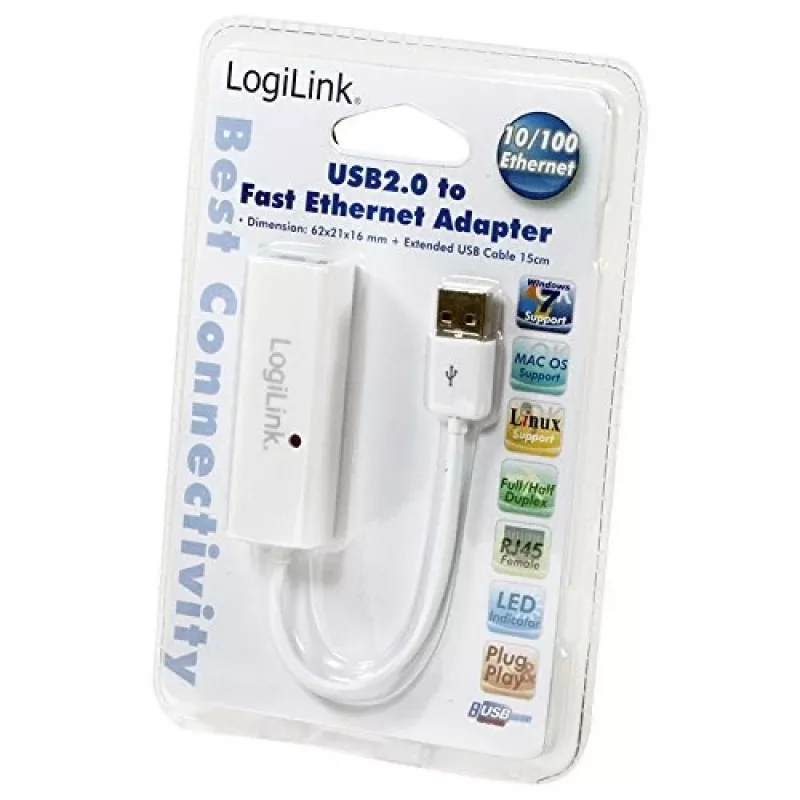

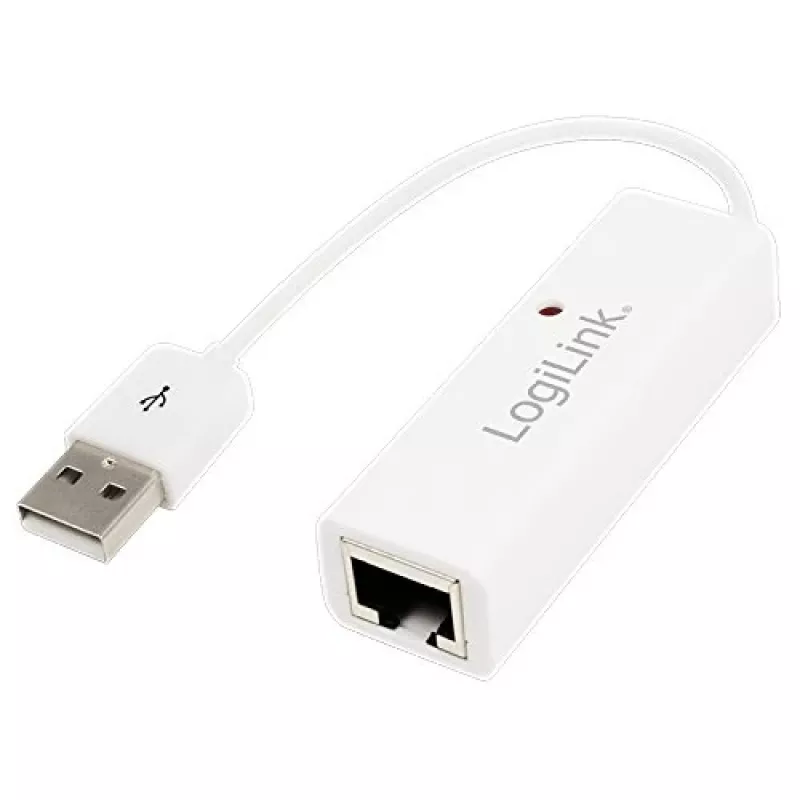

The LogiLink UA0144A is a compact Fast Ethernet USB 2.0 to RJ45 adapter that enables wired network connectivity via a USB A port. It uses the AX88772C chipset and supports IEEE 802.3/802.3u standards with automatic 10/100 Mbps speed detection. The adapter complies with the USB 2.0 specification, includes LEDs indicating USB and network status, and is supplied with a short 0.115 m cable. Its small size (65 × 22 × 11 mm) and white colour make it suitable for desktop or mobile setups.

Advantages

The adapter provides stable wired Ethernet where onboard ports are unavailable or damaged. Using the AX88772C chipset ensures compatibility with a wide range of operating systems, including legacy Windows and macOS versions. The plug-and-play USB A connector and automatic speed negotiation simplify installation and reduce configuration time. Integrated LEDs give immediate visual feedback on USB and network activity.

Suitable for

• Adding a wired Ethernet port to laptops or mini PCs without RJ45
• Temporary network connections for devices with faulty Ethernet ports
• Small office or home setups requiring 10/100 Mbps connectivity

Key specifications

• Product: LogiLink UA0144A Fast Ethernet USB 2.0 to RJ45 Adapter
• Chipset: AX88772C (Windows 8.1 support)
• Connectors: USB A male → RJ45 female
• Standards: IEEE 802.3, IEEE 802.3u
• Maximum transfer rate: 10/100 Mbit/s
• Automatic speed detection
• USB standard: USB 2.0 compliant
• Indicators: LEDs for USB and network
• Cable length: 0.115 m
• Dimensions: 65 × 22 × 11 mm
• Colour: White
• Weight: 0.019 kg

How to use

Connect the USB A male plug to an available USB 2.0 port on your computer and insert an Ethernet cable into the RJ45 female socket. The adapter negotiates network speed automatically; install drivers if your operating system requires them (drivers available for Windows 98SE/ME/2000/XP/7/8/8.1 and Mac OS 5.0). Verify the LEDs to confirm USB power and network link/activity before using network services.

Recommendations

For reliable performance, use a quality Cat5e or Cat6 Ethernet cable and connect the adapter to a full-speed USB 2.0 port. If the device is used with older operating systems, ensure the correct driver version is installed. Avoid strain on the short cable and keep the adapter dry and away from excessive heat.
