ATTE ABOX-E Boîtier intérieur

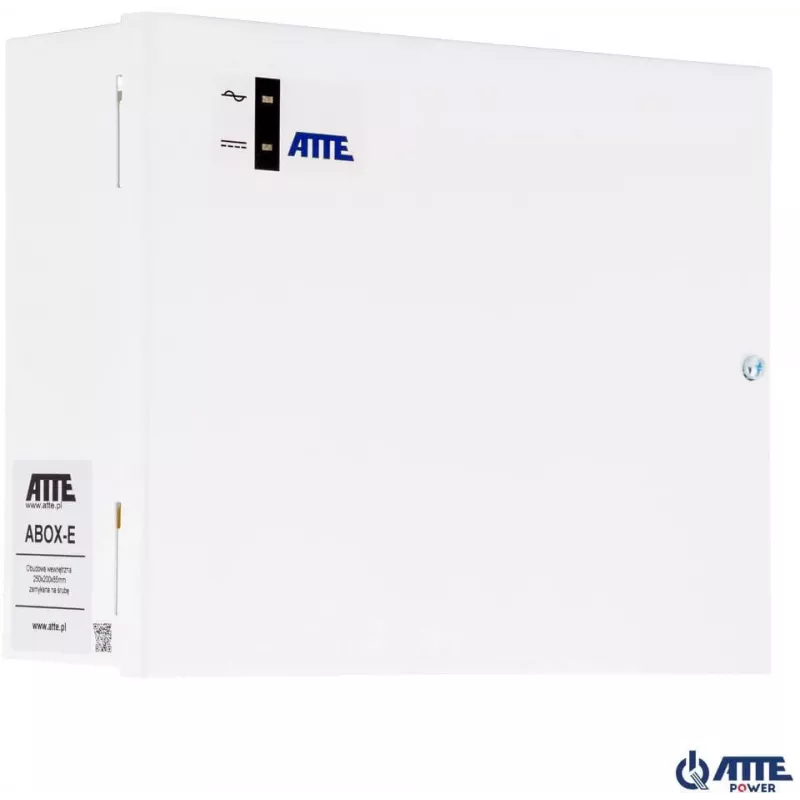

The ATTE ABOX-E is an indoor enclosure from the ABOX series, designed for neat installation of devices and cable termination inside buildings. It is made of powder-coated steel in a semi-matte white finish and features a screw closure, removable door, and tamper switch.

Key features

• Small size – the smallest indoor enclosure in the ABOX range
• Space for a 7Ah battery
• Cable entries at the rear
• Wall spacer for mounting surface
• System perforation 4.8 mm in a 10.8 mm grid
• Vertical or horizontal mounting of devices

Specifications

• Brand: ATTE
• MPN: ABOX-E
• Housing material: 0.8 mm steel sheet
• Finish: powder-coated
• Colour: white
• Tamper switch: installed
• Mounting: wall-mounted, 6 mm mounting holes
• Internal device mounting: system perforation 4.8 mm in 10.8 mm grid, space for 7Ah battery
• Protection rating: IP20
• Operating temperature: -40°C to +70°C
• Dimensions: 250 x 200 x 85 mm
• Weight: 1.25 kg
