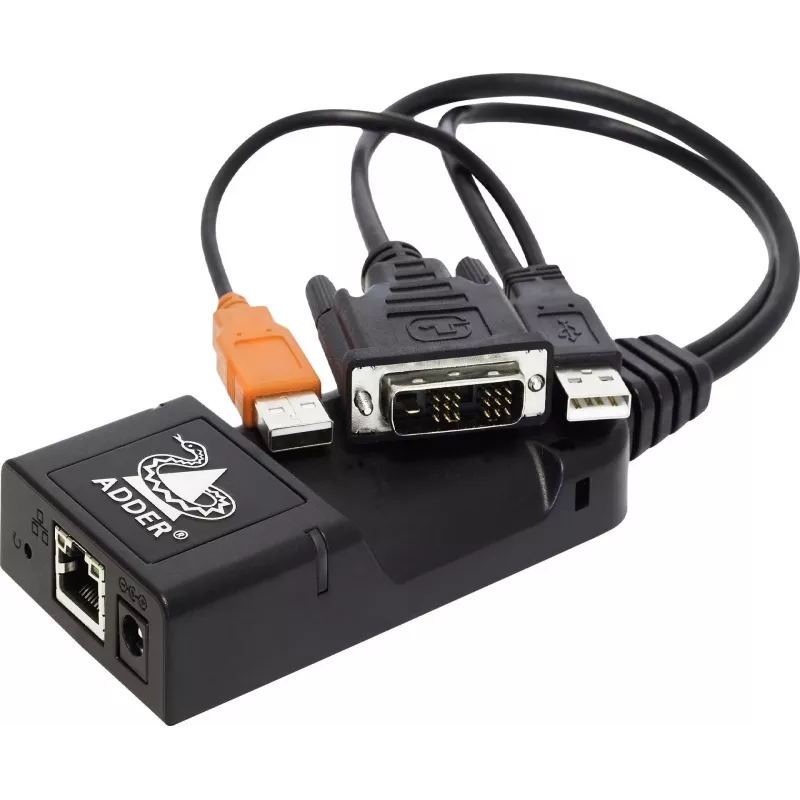

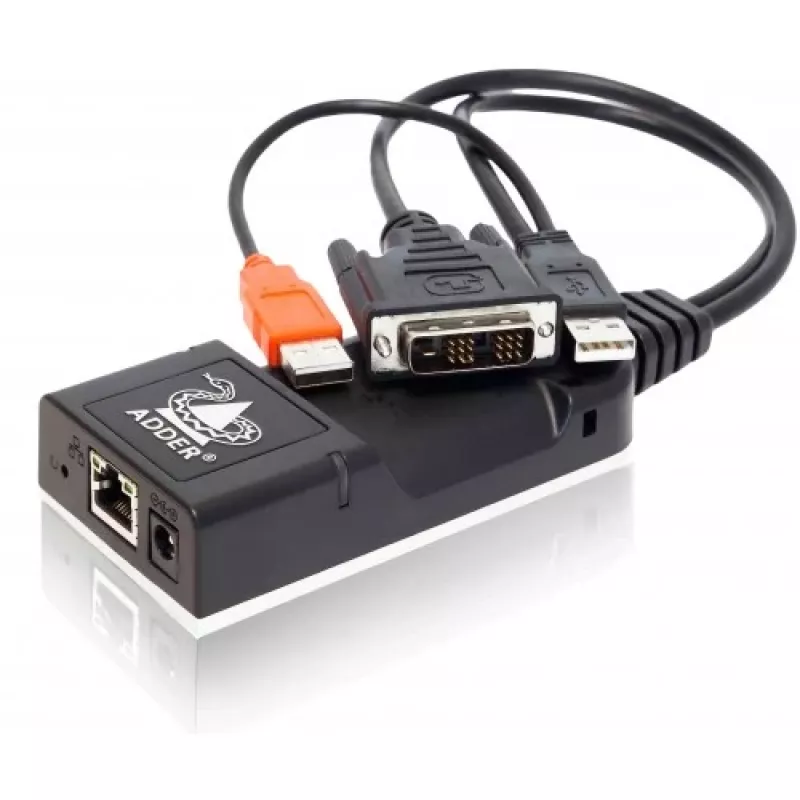

ADDER ADDERlink 100T DVI Computer Access Module (ALIF100T-DVI)

Computer Access Module for KVM over IP, providing DVI-D video and USB 2.0 connectivity over a single Ethernet connection. Supports resolutions up to 1920 x 1200 at 60 Hz with 24-bit color depth.

Advantages

Compact metal chassis with LED indicators for power, link, and activity. OS independent and supports USB HID devices such as keyboards and mice. Near-zero latency for responsive remote control.

Suitable for

• Remote server management in data centers
• Industrial control rooms
• Broadcast and post-production environments

Key specifications

• Video Input: 1x DVI-D
• USB Input: 1x USB Type B
• Network: 1x RJ45 Ethernet
• Max Resolution: 1920 x 1200 @ 60 Hz
• Power: External 5V DC, 2.5A
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 50°C
• Humidity: 5% to 90% non-condensing

Recommendations

Pair with an ADDERLink IP KVM switch for complete remote access. Optional VESA or rack mounting available.
