Zebra Adaptateur Bluetooth pour lecteur RFID - pour Zebra TC21

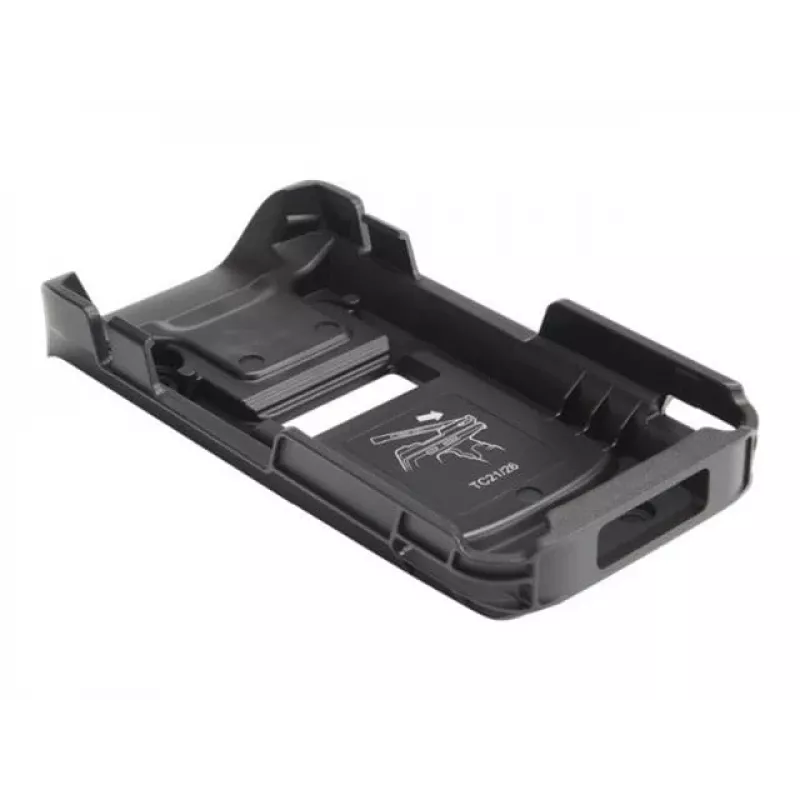

Transform your Zebra TC21 or TC26 mobile computer into a high-performance UHF RFID reader with the ADP-RFD90-TC2X-1R sled adapter. Unlike bulky handheld readers, this sleek sled integrates seamlessly, adding enterprise-grade RFID capture without sacrificing mobility. It supports EPC Class 1 Gen 2 (ISO 18000-63) tags, reads up to 700 tags per second, and reaches distances of 6.7 meters. Bluetooth 5.3 BLE and USB-C connectivity ensure flexible pairing, while the 7000 mAh battery powers extended shifts. Built for tough environments, it withstands multiple 1.5 m drops and carries an IP52 sealing.

Highlights

• Compatible with Zebra TC21, TC26, TC22, and TC27 mobile computers
• Global UHF frequency coverage (865–928 MHz) for regional compliance
• Bluetooth 5.3 Low Energy and USB-C host connectivity
• Circular antenna polarization for reliable tag orientation
• Multi-color LEDs and audible beeper for user feedback
• Integrated ARM Cortex-M4 processor with 1MB flash and 256KB RAM
• Optional charging cradle for convenient battery management

In daily use

Snap the TC21/TC26 into the sled and launch your RFID-enabled application. The circular antenna captures tags regardless of orientation, while the high read rate accelerates inventory counts. The 7000 mAh battery lasts through a full workday, and the USB-C port allows quick recharging. The IP52 rating protects against dust and dripping water, and the rugged design handles accidental drops. With the Zebra RFID SDK for Android, developers can quickly integrate scanning into existing workflows.

Full specifications

• RFID standard: EPC Class 1 Gen 2 (ISO 18000-63)
• Frequency range: 865–928 MHz (region-dependent)
• Max read rate: 700+ tags per second
• Max read range: up to 6.7 m (22 ft)
• Antenna polarization: circular
• Host connectivity: Bluetooth 5.3 BLE, USB-C
• Battery: rechargeable lithium-ion, 7000 mAh
• Environmental sealing: IP52
• Drop specification: multiple 1.5 m (5 ft) drops to concrete
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Processor: integrated ARM Cortex-M4
• Memory: 1MB flash, 256KB RAM
• SDK: Zebra RFID SDK for Android
• Weight (without host): 380 g (0.84 lbs)

Final note

The ADP-RFD90-TC2X-1R is the ideal upgrade for businesses seeking to add RFID capabilities to their existing Zebra mobile computers without replacing their entire fleet.
