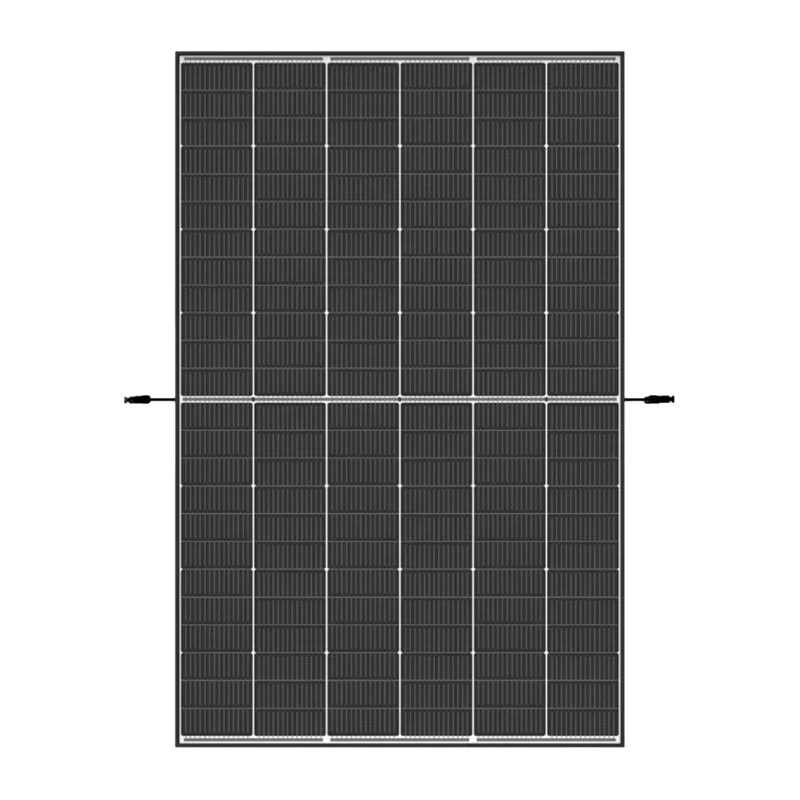

Panneau solaire Trina Solar Ecoflow 520W

The Trina Solar Ecoflow 520W Solar Panel is a high-efficiency monocrystalline module designed for residential and commercial solar installations. With a power output of 435W and an efficiency of 21.8%, this panel delivers reliable performance in a sleek black frame.

Advantages

This solar panel features N-Type monocrystalline cells with dual-glass construction for enhanced durability and longevity. The anodized aluminium alloy frame ensures corrosion resistance, while the IP68 junction box provides superior protection against dust and water ingress. With a 25-year product warranty and 30-year performance warranty, you can trust in its long-term reliability.

Suitable for

• Residential rooftop systems
• Commercial solar arrays
• Ground-mounted installations
• Off-grid and backup power systems

Key specifications

• Maximum Power (Pmax): 435 W
• Module Efficiency: 21.8%
• Open Circuit Voltage (Voc): 49.9 V
• Maximum Power Voltage (Vmp): 40.9 V
• Short Circuit Current (Isc): 11.01 A
• Maximum Power Current (Imp): 10.64 A
• Cell Type: N-Type Monocrystalline
• Number of Cells: 144 (2 x 72)
• Frame Material: Anodized Aluminium Alloy (Black)
• Glass Type: Dual Glass (2.0 mm heat strengthened glass front and back)
• Junction Box Rating: IP68
• Connector Type: MC4 EVO2 / TS4 (or compatible)
• Operating Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1500 V DC (IEC)
• Maximum Series Fuse Rating: 25 A
• Power Temperature Coefficient (Pmax): -0.29 %/°C

Recommendations

For optimal performance, ensure proper installation by a certified professional. Compatible with standard mounting systems and inverters. Always follow local electrical codes and safety guidelines.
