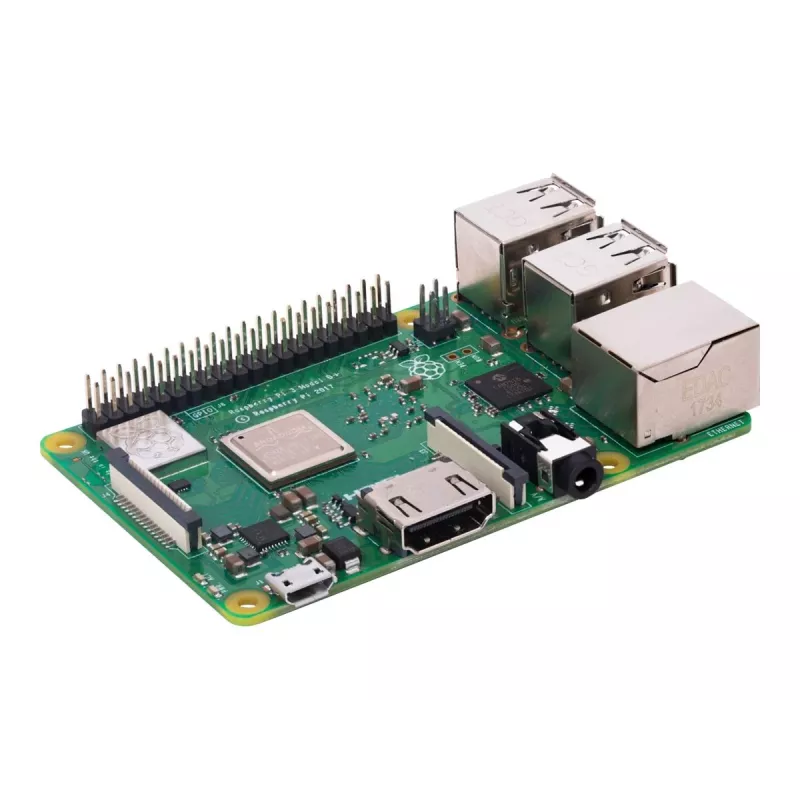

Raspberry Pi 3 Model B+ Ordinateur monocarte

The Raspberry Pi 3 Model B+ is the latest iteration of the world's most popular single-board computer, offering enhanced performance and connectivity. Powered by a 1.4GHz 64-bit quad-core processor, it delivers a 10x increase in performance over the original Raspberry Pi. With dual-band wireless LAN, Bluetooth 4.2, and Gigabit Ethernet, it's ideal for IoT projects, media centers, and educational applications.

Advantages

Upgraded processor for faster computing; dual-band 802.11ac Wi-Fi for reliable wireless connectivity; Bluetooth 4.2 with BLE for low-power peripherals; improved Ethernet throughput via USB 2.0; full compatibility with Raspberry Pi accessories and cases.

Suitable for

• Home automation and IoT projects
• Media streaming (Kodi, Plex)
• Retro gaming emulation
• Learning programming and electronics
• Network servers (VPN, Pi-hole)

Key specifications

• Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
• RAM: 1GB LPDDR2 SDRAM
• Wireless: Dual-band 2.4GHz/5GHz IEEE 802.11ac
• Bluetooth: 4.2, BLE
• Ethernet: Gigabit Ethernet (via USB 2.0, max 300 Mbps)
• USB: 4 x USB 2.0
• GPIO: 40-pin header
• Video: Full-size HDMI, MIPI DSI display port
• Camera: MIPI CSI port
• Audio: 4-pole stereo audio and composite video port
• Storage: Micro SD card slot
• Power: 5V/2.5A DC via Micro USB or GPIO
• Graphics: Broadcom VideoCore IV 3D
• Operating temperature: 0 – 50°C

Recommendations

For optimal performance, use a 2.5A power supply and a high-quality micro SD card. Consider a case with heatsinks for extended operation.
