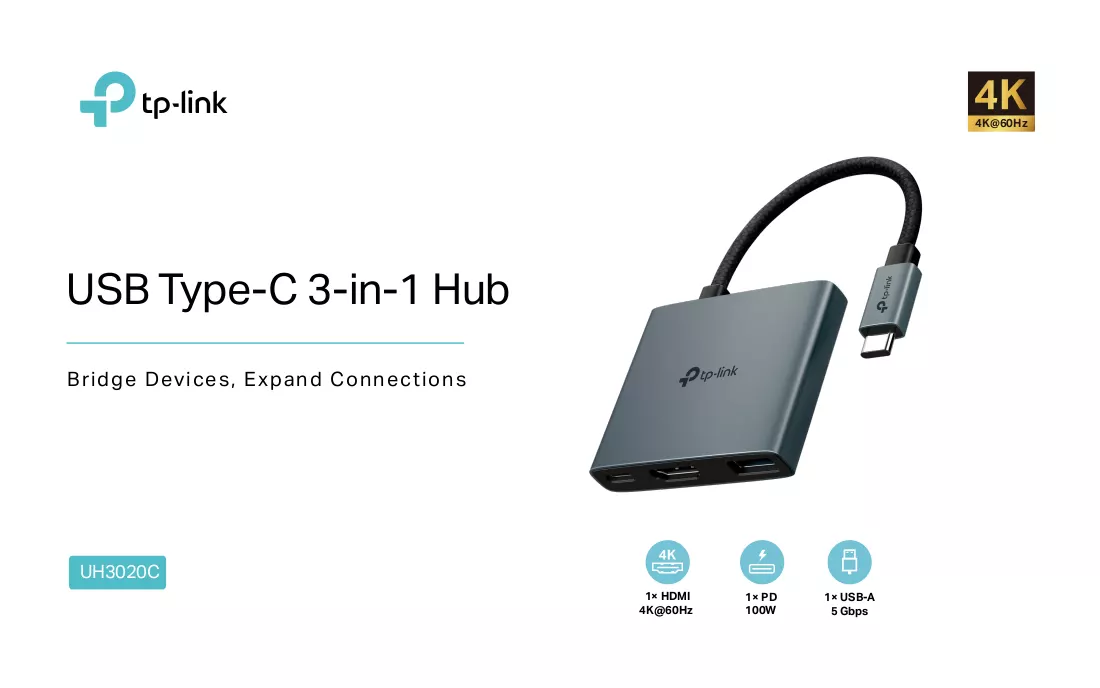

Hub d'interface TP-Link UH3020C USB Type-C 5000 Mbit/s gris

The TP-Link UH3020C USB Type-C Hub converts a single USB-C port into multiple connections, offering a 4K@60Hz HDMI output, up to 100W Power Delivery through the USB-C charging pass-through, and USB-A data ports supporting up to 5 Gbps. Its compact aluminium housing and braided cable provide a durable, portable solution for connecting external displays, peripherals and charging a host device simultaneously.

Advantages

The hub supports ultra high-definition video output at 2160p/60 Hz via HDMI while delivering up to 100W power to your laptop or tablet during use. USB 3.2 Gen 1 (5 Gbps) data ports allow fast file transfers and simultaneous connection of multiple USB devices. The plug-and-play design requires no drivers across major desktop and mobile operating systems. A self-storing connector, aluminium alloy case and braided cable increase durability and portability.

Suitable for

• Connecting a laptop or tablet to an external 4K monitor or TV
• Charging a USB-C laptop or device while using HDMI and USB peripherals
• Connecting external storage, keyboard, mouse or other USB accessories
• Use with Windows, macOS, Linux, iPadOS, iOS, Android and Chrome OS devices

Key specifications

• Model: TP-Link UH3020C
• Host interface: USB Type-C
• Ports: 1× HDMI (4K@60Hz), 1× USB-C Power Delivery (up to 100W pass-through), 1× USB-A (USB 3.2 Gen 1 / 5 Gbps)
• Data transfer rate: up to 5 Gbps (USB 3.2 Gen 1)
• Video output: up to 2160p @ 60 Hz (4K)
• Colour: Grey
• Dimensions (W×D×H): 52.7 × 60.5 × 12.2 mm
• MPN: UH3020C(UN), EAN: 1210002600071

How to use

Connect the UH3020C to your host device's USB-C port. Attach an HDMI cable from the hub to an external monitor or TV to enable video output. Plug a USB-C power adapter into the hub's USB-C power input to provide up to 100W pass-through charging to the host while data and video are active. Connect USB-A devices such as external drives, keyboards or mice to the USB-A port for data transfer at up to 5 Gbps. No driver installation is required for supported operating systems.

Recommendations

For stable 4K@60Hz video and maximum charging performance, use a high-quality HDMI cable rated for 4K60 and a USB-C power adapter that supports PD up to the required wattage of your host device. Avoid heavy bending of the braided cable to prolong product life.
