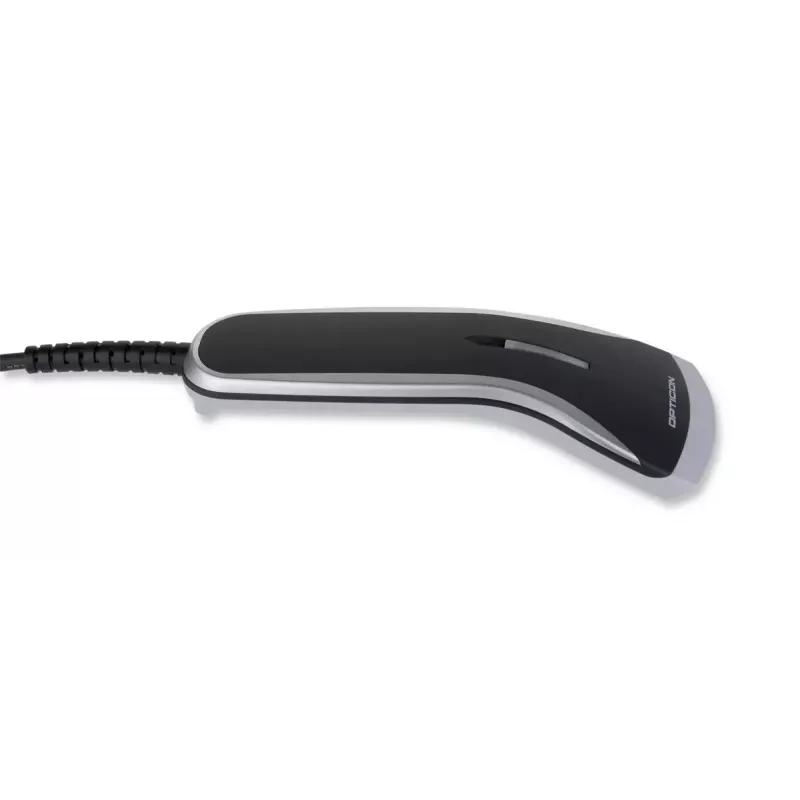

Lecteur de codes-barres portatif Opticon OPR2001

The Opticon OPR2001 is a handheld 1D laser barcode reader designed for efficient, everyday scanning. It combines a compact, lightweight (0.06 kg) housing and an ergonomic shape to fit comfortably in the hand. The device supports a wired connection (USB, RS232 or Keyboard Wedge) and a 1.5 m cable option for dependable data transfer. With IP42 protection and a durable construction that tolerates drops up to 1.5 m onto concrete, the OPR2001 is suitable for a variety of work environments.

Advantages

The scanner offers a high read rate of up to 100 scans per second using a laser sensor, enabling fast and accurate decoding even on low-contrast 1D barcodes. Its ultra-lightweight build and small footprint save counter space and allow extended use with less fatigue. An integrated auto-trigger mode and the option of a dedicated stand provide easy hands-free scanning. Multiple connectivity options make the OPR2001 a plug-and-play device that can be integrated into most host systems without complex setup.

Suitable for

• Retail point-of-sale scanning
• Inventory and stock management
• Light industrial and warehouse tasks
• Reception or office environments with limited counter space

Key specifications

• Scanner type: 1D laser
• Read rate: up to 100 reads/s
• Connectivity: USB, RS232, Keyboard Wedge (wired)
• Weight: 0.06 kg
• Supported linear codes: Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
• Ingress protection: IP42
• Drop resistance: up to 1.5 m onto concrete

How to use

Connect the OPR2001 to a host using the appropriate interface (USB, RS232 or Keyboard Wedge) and allow the host to recognize the device; it functions as a plug-and-play scanner in most systems. For handheld scanning, hold the ergonomic housing comfortably and aim the laser at the barcode, then pull the trigger or rely on the auto-trigger mode. For continuous or high-volume scanning, mount the scanner in the dedicated stand to enable hands-free operation.

Recommendations

Use the OPR2001 in environments protected from heavy dust and direct water exposure to preserve the IP42 rating. Keep barcodes clean and well-aligned to the laser beam for optimal read rates. If frequent drops are expected, inspect the device periodically for damage despite its 1.5 m drop resistance.
