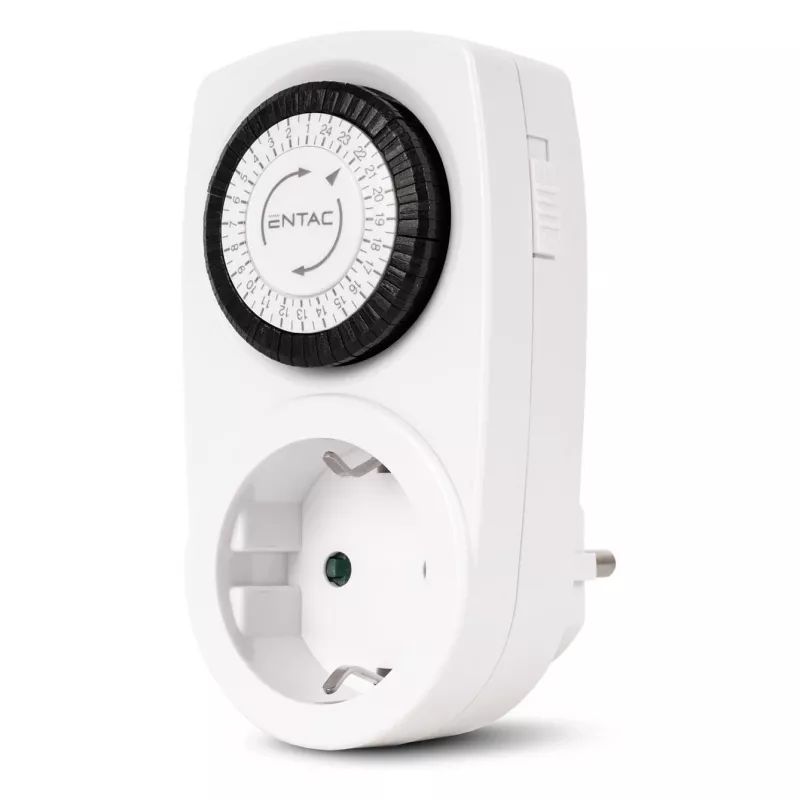

Minuteur mécanique ENTAC Mini 24 heures 24 programmes

The ENTAC Mechanical Timer Mini 24 Hours 24 Programs is a reliable and easy-to-use timer switch designed for indoor use. With its mechanical 24-hour cycle and 96 switching segments (15-minute intervals), it allows precise control of electrical devices up to 16A/3680W. The integrated Schuko plug and socket (Type F) make it ideal for home and office automation, lighting, and small appliances.

Advantages

Simple mechanical operation without programming knowledge required. Manual override switch for continuous ON/OFF. Compact design fits directly into wall outlets. Energy-saving by automating device schedules.

Suitable for

• Controlling lamps, radios, and small household appliances
• Automating aquarium pumps, terrarium lighting, or ventilation
• Energy management for standby devices
• Indoor timer applications requiring 15-minute precision

Key specifications

• Timer type: Mechanical
• Operating cycle: 24 hours
• Minimum switching interval: 15 minutes
• Number of switching segments: 96
• Max. switching capacity: 16 A / 3680 W
• Operating voltage: 230 V AC
• Frequency: 50 Hz
• Protection class: IP20
• Socket type: Schuko (Type F)
• Plug type: Schuko (Type F)
• Manual override: Yes (Continuous ON/OFF switch)
• Housing material: Plastic
• Color: White
• Operating temperature: -10°C to +40°C

Recommendations

For best results, use with devices that do not exceed the rated load. Not suitable for outdoor use or environments with high humidity. Ensure the timer is plugged into a properly grounded outlet.
