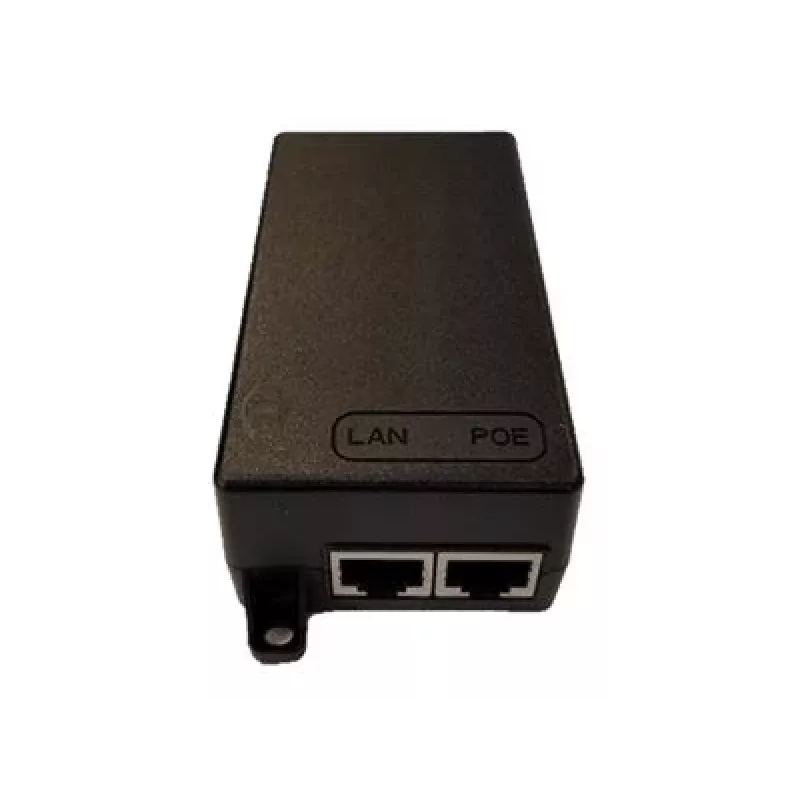

Injecteur d'alimentation CradlePoint - 2 ports de sortie

The CradlePoint Power Injector is a high-performance PoE (Power over Ethernet) injector designed to deliver reliable power and data connectivity to compatible Cradlepoint routers and other 12V PoE devices. With two output ports, this injector simplifies deployment by eliminating the need for separate power cables at each device location. It supports Gigabit Ethernet speeds and is ideal for enterprise, industrial, and remote networking environments.

Advantages

This power injector offers a compact and efficient solution for powering multiple devices over a single Ethernet cable. Its passive PoE (12V) design ensures compatibility with a wide range of Cradlepoint AER and IBR series routers. The dual-port configuration reduces cable clutter and installation time, while the durable metal/plastic enclosure ensures long-term reliability in demanding conditions. Wall-mountable and DIN rail mountable options provide flexible deployment.

Suitable for

• Powering Cradlepoint AER and IBR series routers
• Extending network reach in offices, warehouses, and outdoor installations
• Deploying PoE devices where AC outlets are limited
• Industrial and enterprise networking applications requiring robust connectivity

Key specifications

• Product Type: PoE Injector
• PoE Standard: Passive PoE (12V)
• Input Voltage: 12V DC
• Output Voltage: 12V DC over Ethernet
• Number of PoE Output Ports: 2
• Number of Data Input Ports: 2
• Ethernet Speed: Gigabit Ethernet (10/100/1000 Mbps)
• Connectors: 4x RJ-45 (2x Data In, 2x PoE Out)
• Power Output per Port: Up to 15W
• Mounting Options: Wall-mountable, DIN rail mountable (with optional kit)
• LED Indicators: Power, Link/Activity
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: 5% to 95% non-condensing
• Housing Material: Durable metal/plastic enclosure
• Certifications: CE, FCC, RoHS compliant

Recommendations

For optimal performance, use with Cradlepoint AER or IBR series routers that support 12V passive PoE. Ensure the power source provides adequate current for both ports. For DIN rail mounting, purchase the optional mounting kit separately.
