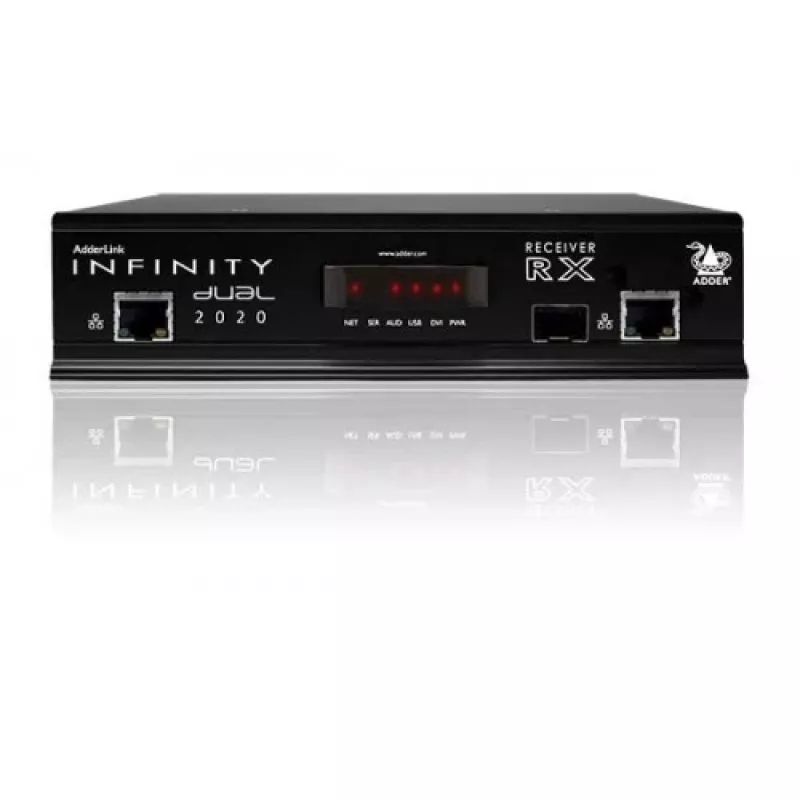

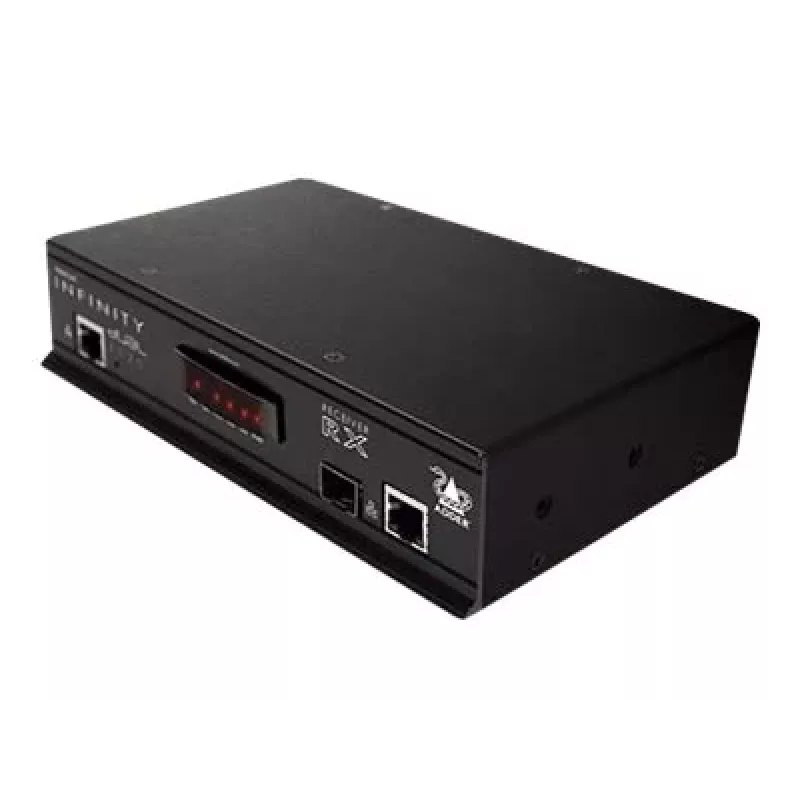

Récepteur KVM over IP ADDER ALIF2020R-IEC

The ADDER ALIF2020R-IEC stands out as a high-performance KVM over IP receiver, delivering near-zero latency and robust security for mission-critical server management. Unlike standard AV receivers, it is purpose-built for remote access to computers and servers over a network, supporting dual Gigabit Ethernet for redundancy or separate networks.

Highlights

• Supports DVI-I video up to 1920 x 1200 @ 60Hz, with VGA compatibility via adapter
• Four USB 2.0 ports for HID and mass storage devices
• Dual Gigabit Ethernet ports with AES 128-bit encryption and RSA 2048-bit authentication
• Compact 1U rack-mountable steel chassis
• OS independent and compatible with AdderLink INFINITY Manager

In daily use

Connect the receiver to your workstation monitor, keyboard, mouse, and audio devices, then pair it with an AdderLink INFINITY transmitter over your IP network. The near-zero latency ensures responsive control, while the dual network ports allow for failover or segregated management traffic. Front USB ports provide convenient access for peripherals.

Full specifications

• Device type: KVM over IP receiver
• Video input/output: 1 x DVI-I (DVI-D and VGA with adapter)
• Maximum resolution: 1920 x 1200 @ 60Hz
• USB ports: 4 x USB 2.0 (2 front, 2 rear)
• USB device support: HID, mass storage
• Audio ports: 1 x 3.5mm line in, 1 x 3.5mm line out, 1 x 3.5mm microphone in
• Network ports: 2 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Power connector: IEC C14
• Power supply: Internal
• Latency: Near-zero
• Encryption: AES 128-bit
• Authentication: RSA 2048-bit
• Rack mountable: Yes (1U, with optional kit)
• Operating system compatibility: OS independent
• Management software: AdderLink INFINITY Manager (AIM) compatible
• Chassis material: Steel
• Operating temperature: 0 to 40°C (32 to 104°F)

Final note

For secure, low-latency KVM extension over IP, the ALIF2020R-IEC delivers enterprise-grade performance in a compact form factor.
